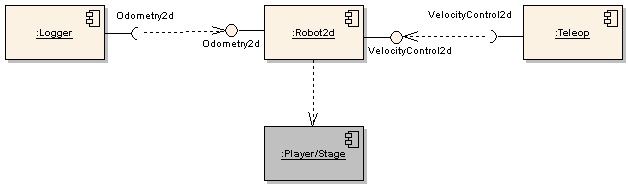

Logging interface data in text format Note: Reviewed for release 2.10.0. In this tutorial we will demonstrate the use of the Orca data logging utility. The system diagram is shown below (IceGrid Registry and IceStorm are not shown). Start up Orca and Player/Stage Repeat the start up instructions of Driving a robot simulated with Player/Stage -- but this time IceStorm is not optional, it has to run. Create a new system directory and copy Orca sample files. $ mkdir -p ~/sys/tutelogtxt; cd ~/sys/tutelogtxt $ cp [ORCA-INSTALL]/share/orca/cfg/robot2d.cfg . $ cp [ORCA-INSTALL]/share/orca/cfg/teleop.cfg . $ cp [ORCA-INSTALL]/share/orca/cfg/logger.cfg . Robot component Run the Robot2d component. $ robot2d Make sure that you can move the robot with Teleop (same as described in Driving a robot simulated with Player/Stage). Odometry logger The sample config file for the Logger contains a sample line for each supported interface. Most of them need to be deleted because we will log a single interface: orca::Odometry2d. The resulting config file is shown below. # Component Logger.Platform=local Logger.Component=logger # Required Interfaces Logger.Requires.Odometry2d0.Proxy=odometry2d@local/robot2d # Configuration Options # Valid values: {'auto', 'local', 'remote'} Logger.Config.Driver=auto Logger.Config.FactoryLibNames=libOrcaLogFactory.so Logger.Config.FilenameTimestamp=0 Logger.Config.Odometry2d0.Format=ascii A couple of things to note about this configuration: We are using the 'ascii' format which is human-readable. We've changed the FilenameTimestamp property to 0 for convenience. This way the timestamp will not be pre-pended to the filenames. In real-world usage enabling this option (by setting it to 1) is very useful because it reduces the chances of accidental deletion of log files. Run the logger. $ logger Command the robot to move around. After a few seconds stop the logger and list the newly created log files. $ ls *.log master.log odometry2d0.log Examining log files Lets examine the log files and compare their contents with the log file format described in the documentation of the Logger component. Master file The data section contains the list of data messages from all interfaces (in our case there's only one with ID=0). The time stamps here are the time when the message was received. #data 1185086269 26512 0 0 1185086269 234753 0 1 1185086269 541920 0 2 Interface log file The data section consists of 2-line segments, one for each data message. A typical one is shown below: 601 899999 1.3562 -0.236412 -34.8 0.25 0 -12 To understand it, we have to examine the documentation for orcalogfactory::Odometry2dLogger (there is a link to it from Logger documentation under the heading "Details for specific interfaces"). Now we can interpret the segment above. This data point was collected at the time 601 seconds and 899999 microseconds (this is Stage simulation time, not processor time). At that time, the odometric position of the robot was x=1.3562m, y=-0.236412m, theta=-34.8deg. The robot was moving with speed vx=0.25m/s, no cross speed, and turnrate=-12deg/s. Parsing in Matlab As noted in the Logger documentation, there's a simple Matlab parsing function for this interface in [ORCA_SRC]/scripts/matlab/logutils/parseodometry2ddata.m.
